Gpio Output #60

New Issue
Closed
opened 2017-09-01 12:34:08 +01:00 by marcoamr2002 · 1 comment
marcoamr2002 commented 2017-09-01 12:34:08 +01:00 (Migrated from github.com)
Copy Link

Hi,

I have an issue with the output function on my Orange Pi Zero.
I have configured the GPIO 5 for turn on/off the lighs with a relay. I can make the relay work with the gpio write 5 1 to turn on, and gpio write 5 0 to turn off in the command line but in the plugin nothin happens:

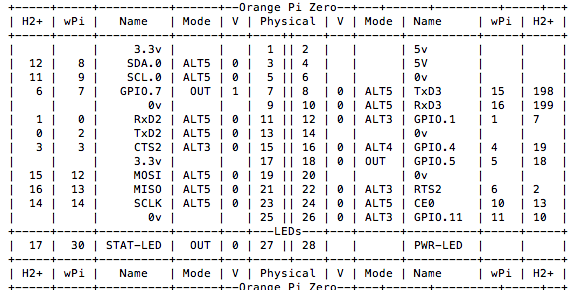

captura de pantalla 2017-09-01 13 27 59

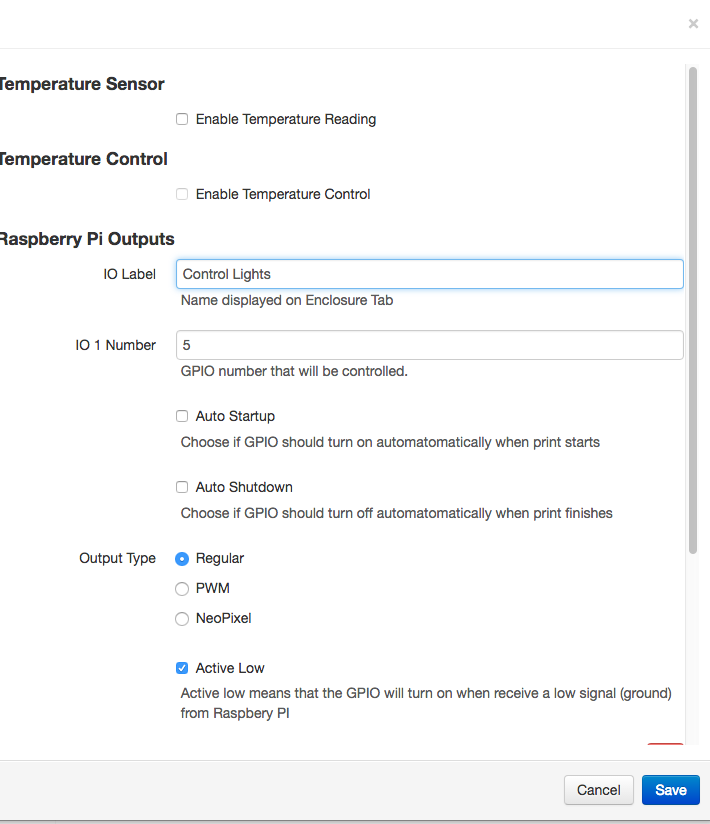

captura de pantalla 2017-09-01 13 32 21
captura de pantalla 2017-09-01 13 32 38

What I´m doing wrong?

Sorry for my english

Marco

Hi, I have an issue with the output function on my Orange Pi Zero. I have configured the GPIO 5 for turn on/off the lighs with a relay. I can make the relay work with the gpio write 5 1 to turn on, and gpio write 5 0 to turn off in the command line but in the plugin nothin happens: ![captura de pantalla 2017-09-01 13 27 59](https://user-images.githubusercontent.com/27769671/29968034-1700cc16-8f1a-11e7-8c09-5738297805ee.png) ![captura de pantalla 2017-09-01 13 32 21](https://user-images.githubusercontent.com/27769671/29968036-19ff37ea-8f1a-11e7-9f11-031abc73c91a.png) ![captura de pantalla 2017-09-01 13 32 38](https://user-images.githubusercontent.com/27769671/29968037-1d0e7784-8f1a-11e7-9fb9-103aba546cb3.png) What I´m doing wrong? Sorry for my english Marco
vitormhenrique commented 2017-09-01 15:50:45 +01:00 (Migrated from github.com)
Copy Link

Simple: you are using a unsupported board. This plugin only works with Raspberry PI family. It rely on RPi.GPIO python library and utilize Raspberry Pi interrupts.
I have no plans to port this plugin to other boards. Those could be major changes, and I don't have any orange pi board to test.
So you have 3 options:

  1. Use a raspberry pi
  2. Fork the plugin, make the necessary changes to work on orange pi, probably using this library: https://github.com/WereCatf/WiringOP
  3. Donate one orange pi so I can properly test and implement the changes
Simple: you are using a unsupported board. This plugin only works with Raspberry PI family. It rely on RPi.GPIO python library and utilize Raspberry Pi interrupts. I have no plans to port this plugin to other boards. Those could be major changes, and I don't have any orange pi board to test. So you have 3 options: 1. Use a raspberry pi 2. Fork the plugin, make the necessary changes to work on orange pi, probably using this library: https://github.com/WereCatf/WiringOP 3. Donate one orange pi so I can properly test and implement the changes
